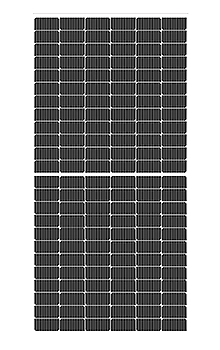

Mono Perc

ELECTRICAL DATA @STC

Model: SR-M672440HLP

Maximum Power Pmpp [Wp]: 440

Maximum Power Tolerance (%): +≥3%

Voltage at maximum Power Vmpp[V]: 40.99

Open circuit Voltage Voc [V]: 49.28

Current at maximum Power Impp [A]: 10.74

Short circuit Current Isc [A]: 11.35

NOCT [deg. C]: ±2

Module Efficiency [%]: 20.25 %

Cells Efficiency: 20.47 %

Number of Cells: 144 (6 x 24)

The Electrical characteristics are at Standard Test Conditions (STC: irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25°C/77°F)

ELECTRICAL DATA @STC

Model: SR-M672445HLP

Maximum Power Pmpp [Wp]: 445

Maximum Power Tolerance (%): +≥3%

Voltage at maximum Power Vmpp[V]: 22.36

Open circuit Voltage Voc [V]: 49.86

Current at maximum Power Impp [A]: 10.81

Short circuit Current Isc [A]: 11.41

NOCT [deg. C]: ±2

Module Efficiency [%]: 20.71 %

Cells Efficiency: 20.71 %

Number of Cells: 144 (6 x 24)

The Electrical characteristics are at Standard Test Conditions (STC: irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25°C/77°F)

ELECTRICAL DATA @STC

Model: SR-M672450HLP

Maximum Power Pmpp [Wp]: 450

Maximum Power Tolerance (%): +≥3%

Voltage at maximum Power Vmpp[V]: 41.39

Open circuit Voltage Voc [V]: 50

Current at maximum Power Impp [A]: 10.81

Short circuit Current Isc [A]: 11.48

NOCT [deg. C]: ±2

Module Efficiency [%]: 20.71 %

Cells Efficiency: 20.71 %

Number of Cells: 144 (6 x 24)

The Electrical characteristics are at Standard Test Conditions (STC: irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25°C/77°F)
